Quick folding gate engineered for intensive use and continuous mechanical loads

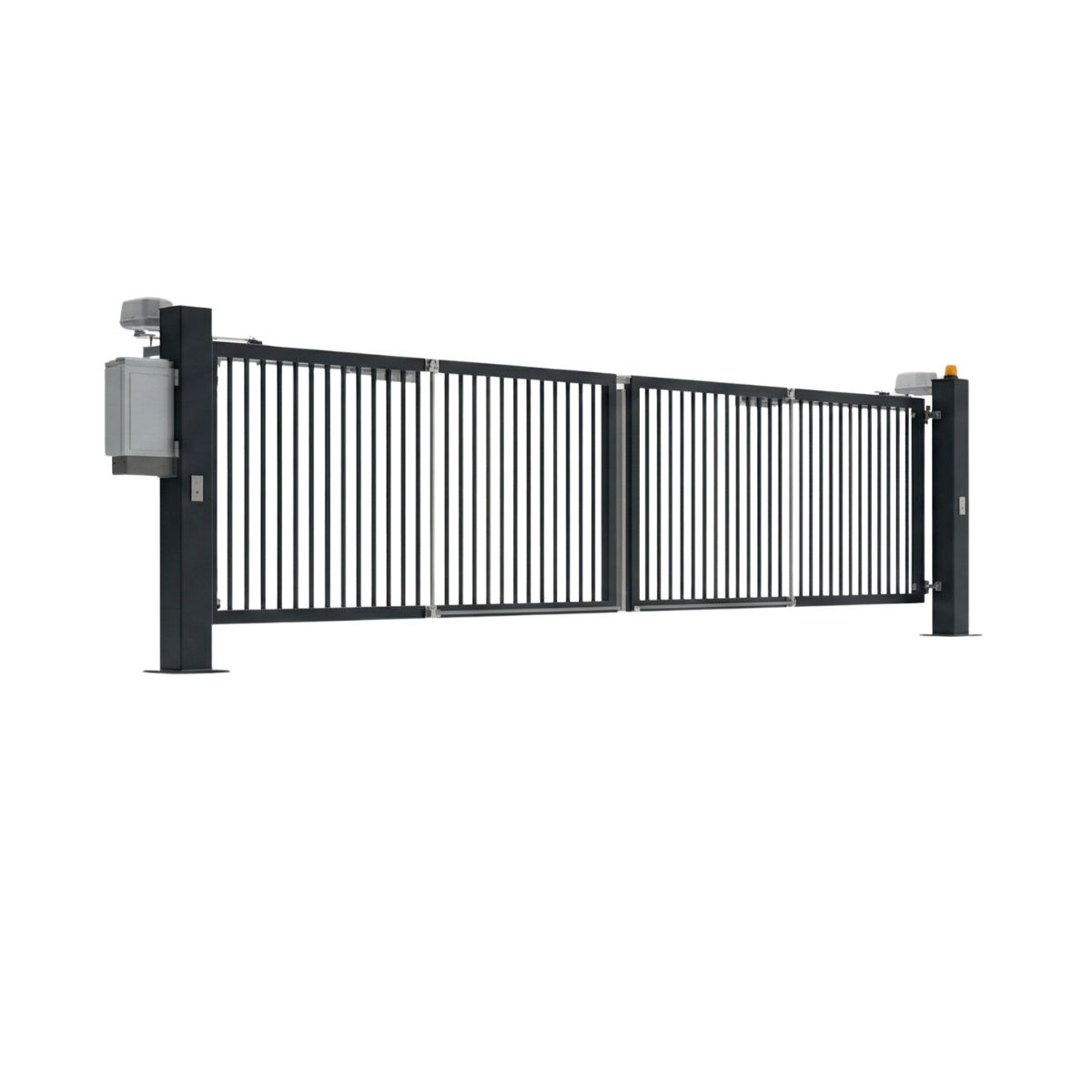

The EntraQuick II is a heavy-duty quick folding gate designed for access points with high traffic volumes and continuous intensive use. With opening speeds of up to 1 m/s, it ensures a smooth traffic flow even in 24/7 operation. Its reinforced construction is engineered to withstand mechanical stress and long-term loads, providing enhanced structural stability under demanding conditions. Delivered pre-assembled, the system allows for efficient installation and seamless integration into existing security and control systems.
The EntraQuick I and II Quick Folding Gates from PeriGuard are designed for access points with high vehicle frequency. With opening speeds of up to 1 m/s, they ensure smooth traffic flow while requiring minimal installation space.
The EntraQuick I stands for a compact design and fast installation, while the EntraQuick II offers enhanced stability for continuous intensive use. Both systems are delivered pre-assembled, integrate seamlessly into existing control concepts, and are engineered for reliable 24/7 operation.
The EntraQuick II is designed for access points operating continuously at high cycle rates while meeting increased demands for stability and durability. Fast opening and closing speeds minimize downtime and prevent congestion – even with dense vehicle flow and continuous operation over extended periods.
The reinforced design increases mechanical resilience and supports reliable long-term performance, even under demanding operating conditions. This makes the system ideal for sites where high traffic frequency must be combined with structural robustness. The precise gate guidance ensures defined and controlled vehicle access management and allows seamless integration into existing security and access control concepts.
Delivered pre-assembled, the system keeps installation time to a minimum and reduces disruption to ongoing operations. A manual emergency release ensures that vehicle access remains functional in the event of a power failure, safeguarding operational continuity.
High-performance access points for high traffic frequency and continuous intensive use
| EntraQuick® II (single-leaf) | EntraQuick® II (double-leaf) | |
| Gate height | 2050 mm, 2550 mm; 3050 mm (only for CW ≤ 4000 mm) | 2050 mm, 2550 mm; 3050 mm (only for CW ≤ 8000 mm) |
| Clear width (CW) | 2000 mm – 5000 mm (in 500 mm increments) | 4000 mm – 10000 mm (in 500 mm increments) |
| Gate infill | Bar infill made of square hollow section SHS 30 | Bar infill made of square hollow section SHS 30 |
| Finish | Hot-dip galvanised (standard); Optional powder-coated | Hot-dip galvanised (standard); Optional powder-coated |
| Weight | Approx. 1100 kg (for maximum applicable dimension) | Approx. 1600 kg (for maximum applicable dimension) |
| Lowered foundation | Top edge of foundation 200 mm below finished floor level | Top edge of foundation 200 mm below finished floor level |
| Operating speed | Max. 0.5 m/s; depending on CW | Max. 1.0 m/s; depending on CW |
| Drive | Electro-mechanical in combination with joint mechanism | Electro-mechanical in combination with joint mechanism |
| Locking | Self-locking; additional magnetic and bolt locks on request | Self-locking; additional magnetic and bolt locks on request |
| Control unit | Automatic control (maintained command) WE-Tronic II with frequency converter | Automatic control (maintained command) WE-Tronic II with frequency converter |
| Emergency operation | By manual release of drive arm (during power failure) | By manual release of drive arm (during power failure) |
| Temperature range | Control unit: -10 °C … +50 °C Drive: -45 °C … +50 °C | Control unit: -10 °C … +50 °C Drive: -45 °C … +50 °C |
| Optional add-ons | Serrated top edge, induction loops, traffic lights, LED spot lights, key safe, fence connection systems | Serrated top edge, induction loops, traffic lights, LED spot lights, key safe, fence connection systems |
,,
Find the right protection for your needs.
The EntraQuick II quick folding gate achieves opening speeds of up to 1 m/s (double-leaf) and 0.5 m/s (single-leaf). This reduces waiting times and supports continuous traffic flow, even at high vehicle volumes. The exact opening speed is configured on a project-specific basis to meet the respective operational requirements.
The EntraQuick II is designed for high daily operating cycles and continuous mechanical stress. The exact configuration is defined on a project-specific basis, taking operational requirements into account.
Yes. Its design, drive system, and control technology are engineered for continuous operation under high utilization, ensuring stable and reliable long-term performance.
Depending on the installation site, the system can be adapted in terms of material specifications and corrosion protection to ensure reliable performance even under demanding climatic conditions.
Yes. The gate can be integrated on a project-specific basis into existing control, access control, and security concepts, supporting controlled vehicle access management within the overall system architecture.
The EntraQuick II is a robust quick folding gate designed for intensively used access points. For certified high-security or impact-rated requirements, PeriGuard offers specialized security solutions tailored to those applications.
The product images shown are for illustrative purposes only and may vary in design and specific details.
