Crash-tested sliding gate for certified high-security access points with clear widths of up to 7 m
The Tracked Gate M50 (TG M50) is a crash-tested sliding gate for high-security access points with large clear widths. Certified in accordance with recognized international standards such as ASTM F2656 and PAS 68, it provides defined vehicle restraint and reliable protection against deliberate breach attempts involving heavy vehicles.
Its heavy-duty steel construction combines a high level of protection with controlled vehicle access management. Despite its robust design, the TG M50 ensures efficient opening and closing movements, making it suitable for critical infrastructure with elevated security threat levels.
The Tracked Gate M50 (TG M50) is deployed where wide access points must be secured against deliberate vehicle attacks. As a certified sliding gate, it meets defined vehicle restraint requirements under realistic impact conditions and provides verified resistance against ram-based attack scenarios.
Its heavy-duty construction makes the system particularly suitable for security-sensitive areas with elevated threat levels. At the same time, the sliding mechanism enables clear and controlled vehicle access management, even for wide entrances of up to 7 m.
The TG M50 can be deployed as a standalone high-security element or as part of a multi-layered perimeter protection concept. Its robust drive system and locking mechanism ensure a defined security status in the closed position.
Certified protection for large-scale access points with elevated threat levels
| Tracked Gate M50 (TG M50) | |
| Crash test certification | Impact energy 1680 kJ (ASTM) / 1852 kJ (PAS 68) Certified according to ASTM F 2656-07 M50/P1 and PAS 68:2010 |
| Gate height | 2000 mm, 2500 mm and 3000 mm (incl. 100 mm ground clearance) |
| Clear Width (CW) | 3000 mm – 7000 mm (in 1000 mm increments) |
| Gate infill | Bar infill made of square hollow section SHS 30 (standard) Special infills on request |
| Weight | Approx. 4710 – 6950 kg (depending on Clear Width and gate height) |
| Lowered foundation | Top edge of foundation 100 mm below finished floor level (Foundation depth: 400 mm) |
| Drive | Electro-mechanical (1.5 kW, 400 V, 3-phase) |
| Control unit | WE-Tronic II (in control box of the drive column) |
| Operating speed | Normal operation: max. 0.4 m/s Optional: EFO (Emergency Fast Operation): max. 0.8 m/s |
| Emergency operation | Manual release after disengagement of motor by clutch lever |
| Temperature range | Control unit: -10 °C … +50 °C Drive: -20 °C … +40 °C (up to +60 °C with power reduction) |
| Optional add-on modules | EFO (Emergency Fast Operation for Non-European countries), special infills, drive column in gate colour, special colours |
,,
Find the right protection for your needs.
The TG M50 has been crash-tested and certified in accordance with international standards such as ASTM F2656 and PAS 68. It withstands the impact of a 7.5-ton vehicle at 80 km/h and provides reliable protection against deliberate breach attempts involving heavy vehicles. The specific classification is documented on a project-specific basis.
The TG M50 is suitable for high-security access points with large clear widths and elevated threat levels. It is primarily deployed where, in addition to controlled vehicle access management, certified physical vehicle restraint is required.
Unlike standalone bollard systems or lightweight gate solutions, the TG M50 combines a massive, crash-tested structure with a fully functional sliding gate system. It delivers certified vehicle restraint while maintaining large clear widths, making it ideal for access points where both protection performance and passage width are critical.
Installation requires a properly dimensioned foundation and sufficient lateral space for the sliding unit. The exact configuration is planned on a project-specific basis and tailored to site conditions to ensure the certified level of protection.
Yes. The TG M50 can be equipped on a project-specific basis with extended control and security features. These include integration into security management systems, access control solutions, signaling systems, and additional security-relevant enhancements to ensure seamless incorporation into a comprehensive perimeter protection concept.

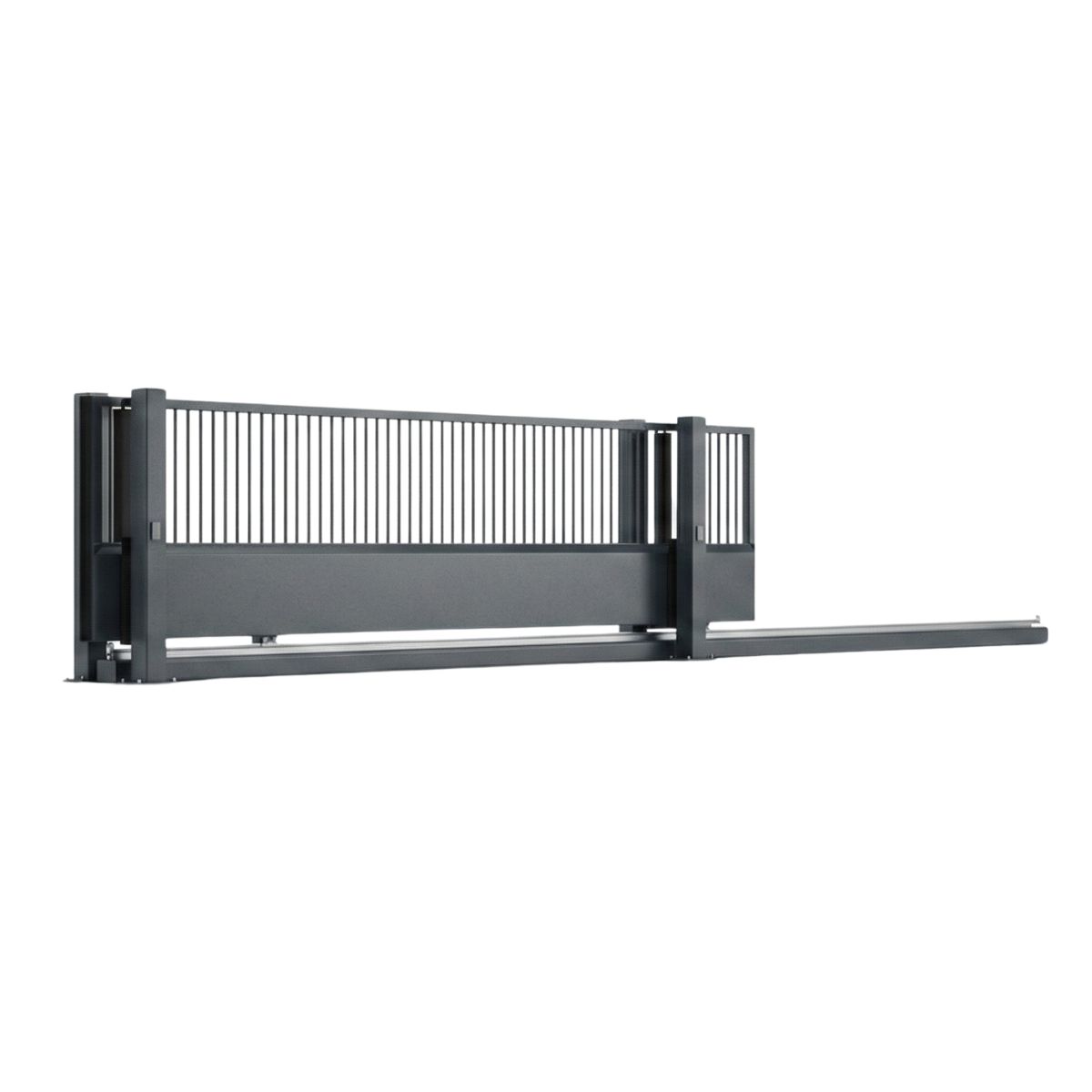

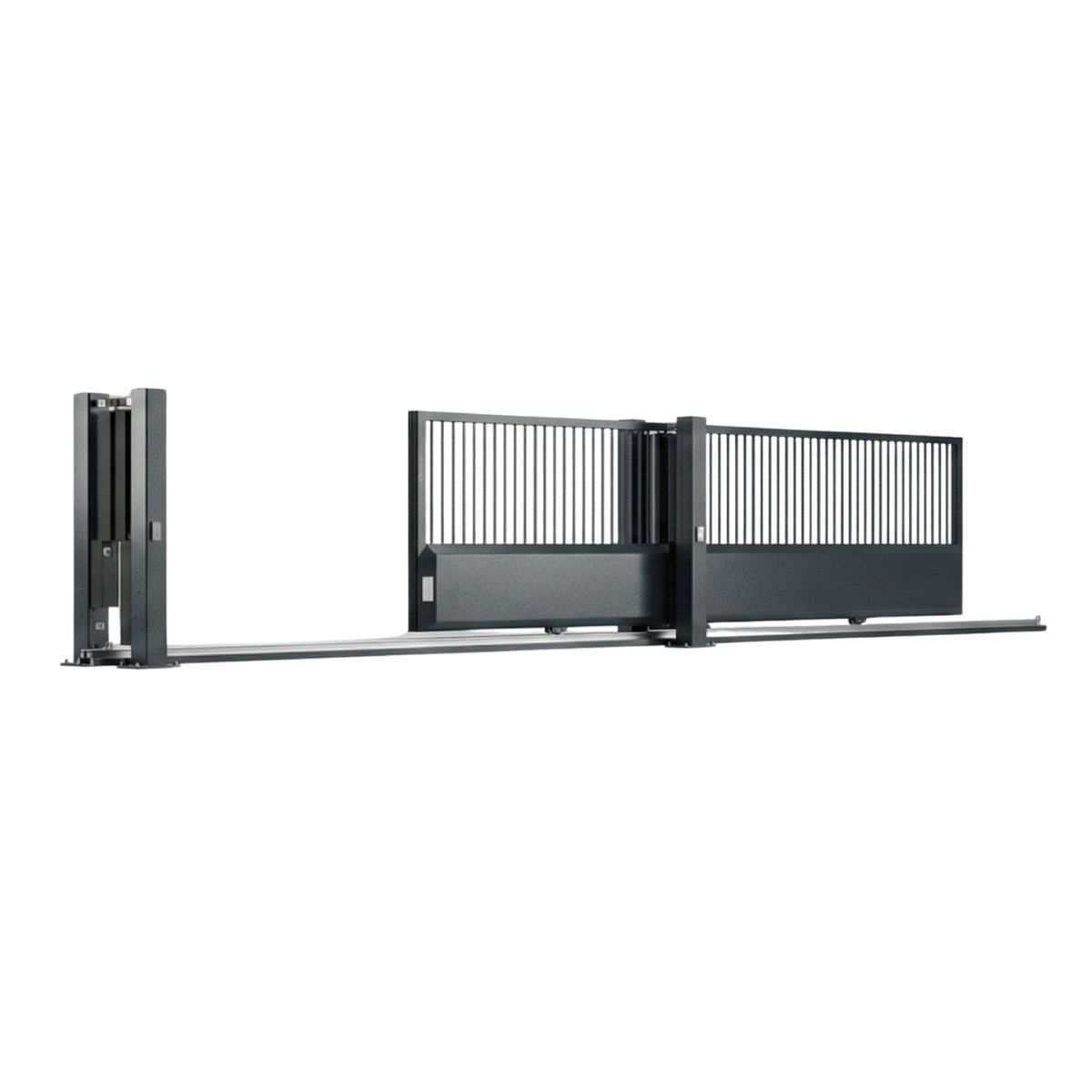

The product images shown are for illustrative purposes only and may vary in design and specific details.
