Robust turnstile for controlled pedestrian separation under high traffic volumes
The TurnSec 4.0 is a fully automated turnstile designed for reliable pedestrian separation at security-sensitive sites. It ensures controlled access processes even under high foot traffic and supports a clear separation between public and restricted areas.
Its robust steel construction is designed for long-term operation and is suitable for both indoor and outdoor use. By integrating into existing access control systems, the TurnSec 4.0 becomes a central component within the overall perimeter protection concept.
The TurnSec 4.0 is deployed where pedestrian flows must be reliably managed and individual access events precisely controlled. Its motorized separation mechanism ensures that only one person is granted entry to the protected area per authorization.
Thanks to its durable construction, the system is suitable for sites with high daily usage. It can be deployed as a standalone access solution or as part of a multi-layered perimeter protection concept – for example, in combination with gate systems or vehicle barriers.
The modular design allows for the integration of access readers, security systems, and signaling solutions. This enables the TurnSec 4.0 to combine controlled pedestrian separation with advanced access control technology.
Controlled pedestrian separation for high throughput and security-critical requirements
| Turnstile TurnSec 4.0 | |
| Passage height | 2140 mm |
| Passage width | approx. 620 mm |
| Rotor | 3-arm (120°), Ø 1220 mm |
| Weight | approx. 660 kg (without roofing) |
| Installation depth | 200 mm lowered foundation (bottom frame prepared for installation) |
| Material | Robust steel construction (hot-dip galvanised/powder-coated) Rotor made of stainless steel |
| Drive | Motor-assisted operation (TOURNAMATIC) |
| Control unit | Multi-functional, automatic control unit WE-Tronic II |
| Function during power failure | Standard: fail safe in exit direction / fail secure in entry direction (Optional: fail safe in both directions) |
| Temperature range | -10 °C … +50 °C |
| Optional add-on modules | Canopy (Makrolon roof), LED-illumination, signalling systems, special colours |
,,
Find the right protection for your needs.
Throughput performance depends on the configuration and access logic. In typical applications, the TurnSec 4.0 supports a continuous flow of approximately 15 persons per minute with single-entry authorization, making it suitable for high-traffic entrances.
The turnstile can be deployed as a standalone access point or as part of a comprehensive perimeter protection concept. When combined with gate systems, fencing, or vehicle barriers, it creates a clearly structured security architecture with defined access control.
Yes. The robust design is engineered for continuous outdoor operation. Weather-resistant materials and appropriate protective components ensure reliable performance even under demanding environmental conditions.
For combined pedestrian and bicycle access points, PeriGuard recommends the specially developed TurnSec 4.0 Bicycle with an integrated bicycle passage.
In the event of a power failure, the system can either remain locked or switch to a defined release mode, depending on the configuration. The setup is determined in accordance with the respective security requirements.
PeriGuard provides support from initial project planning and system integration through to maintenance and service. This includes technical consulting, coordination with existing access control solutions, and long-term operational support.

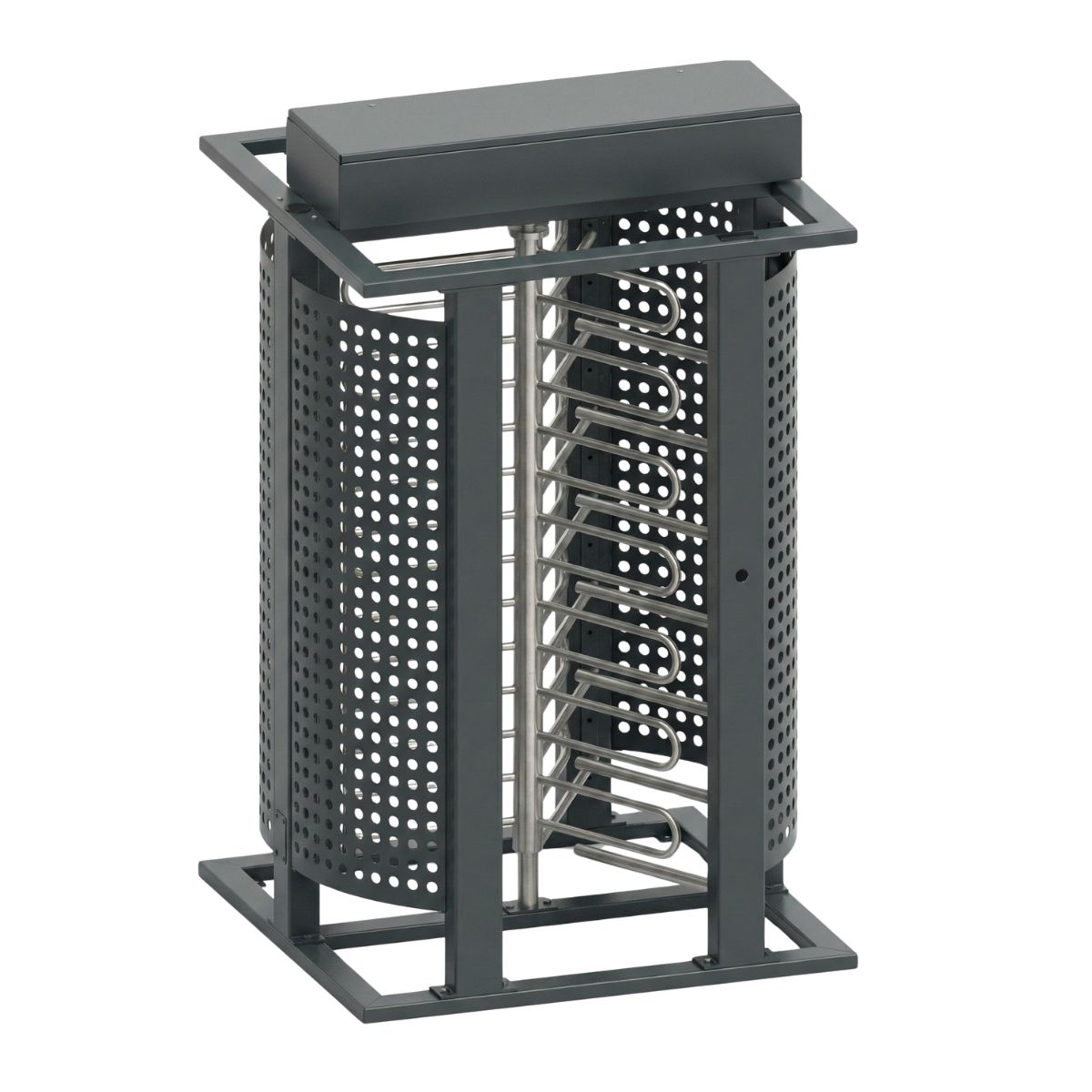

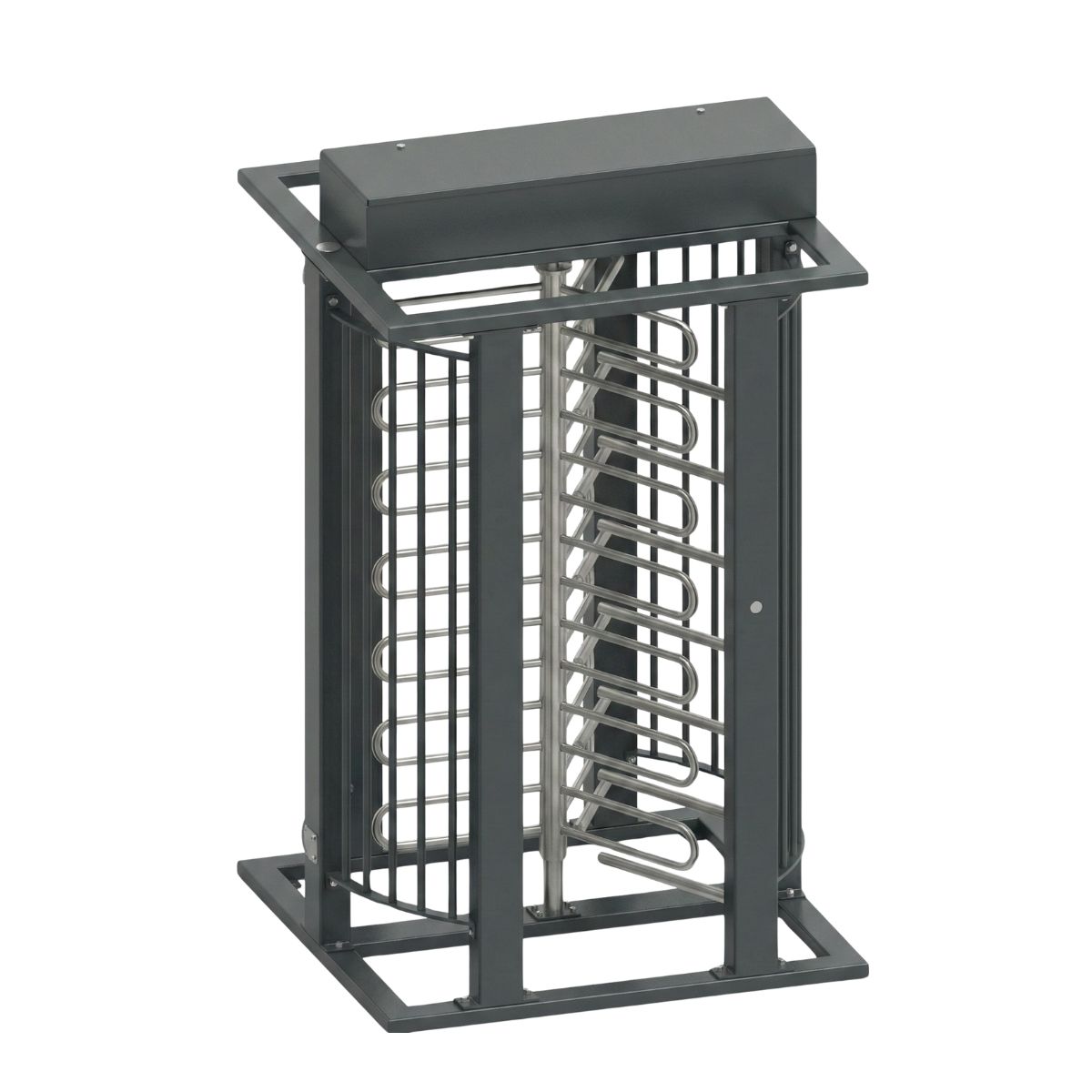

The product images shown are for illustrative purposes only and may vary in design and specific details.
