CityProtector

Q: For which areas is the CityProtector suitable?

The CityProtector is suitable for city centers, public squares, and urban environments where certified vehicle restraint in accordance with PAS 68 and IWA 14-1 must be integrated discreetly.

Q: What is the difference between the M40 and M50?

The M40 is designed for impact scenarios of up to 64 km/h, while the M50 is rated for impact speeds of up to 80 km/h. Both models are crash-tested and suitable for sensitive urban environments. You can find more information in our certificate overview.

Q: How deep does the CityProtector need to be installed?

The system requires a foundation depth of only approx. 220 mm, making it one of the shallowest certified impact protection systems available – ideal for pipes or structural restrictions.

Q: Are temporary installations possible?

Yes. The modular design allows installation without heavy civil engineering works and supports temporary deployment for events or seasonal applications.

Q: Can the CityProtector be used as street furniture?

Yes. Integrated modules such as benches, bicycle racks, plant boxes, and tables combine protective function with urban usability.

Q: What alternatives are there for non-urban projects?

For purely security-driven projects without a design focus, the M30 or M50 bollards are recommended – available in fixed or automatically retractable versions with the corresponding standards-based certification.

Certified high-security solution with functional and architectural integration into urban environments

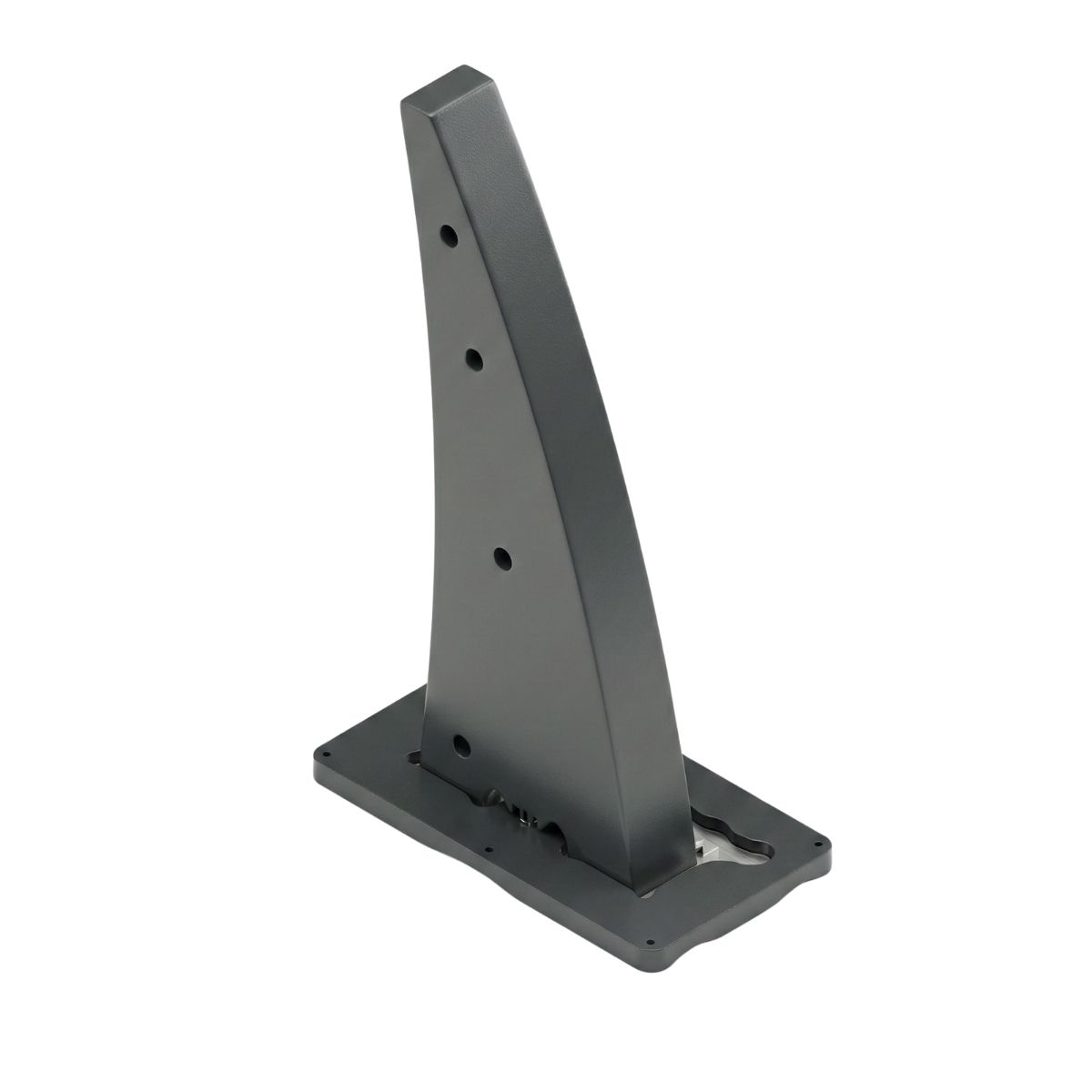

The CityProtector is a high-security solution for urban environments, combining certified vehicle restraint in accordance with PAS 68 and IWA 14-1 with seamless architectural integration. It is available in protection classes M40 and M50, covering different threat levels in public spaces.

Thanks to its shallow foundation depth, the CityProtector is particularly suited for inner-city areas with complex underground infrastructure or structural constraints. Complementary plate and modular elements such as seating surfaces, tables, bicycle racks, or bench modules enable functional and aesthetic integration into urban design concepts.

Application

The CityProtector is deployed wherever public spaces must be protected against vehicle attacks without visually dominating the urban landscape. Typical applications include city centers, pedestrian zones, event areas, and representative public squares.

The selection between M40 and M50 is based on a project-specific threat assessment. Both variants offer identical design flexibility and the same reduced foundation requirements, but differ in their certified impact energy performance.

The shallow installation depth facilitates implementation in areas with existing underground infrastructure. As a fixed system, the CityProtector can be functionally enhanced through modular additions – such as integrated benches, bicycle racks, table modules, or plantable elements for structured space delineation.

Typical areas of application

High security and urban design combined in one integrated solution

Public Spaces & Events

Design-led barriers for urban spaces

Stadium & Event Venues

High-Performance Perimeter Solutions

Government Agencies & Institutions

Comprehensive protection for state-owned areas

Rail Transport

High Security with Style at Stations and Depots

Your Advantages

Specifications

Product	CityProtector M40	CityProtector M50
Crash Test Certification	Impact Energy 1185 kJ (7.5 t @ 64 km/h) Certified to PAS 68, IWA 14-1 (Zero static penetration)	Impact Energy 1778 kJ (7.2 t @ 80 km/h) Certified to IWA 14-1
Blocking Height	900 mm	900 mm
Blocking Width	100 mm (Layered construction)	100 mm (Layered construction)
Weight	approx. 325 kg per bollard (approx. 45 kg per blocking element)	approx. 325 kg per bollard (approx. 45 kg per blocking element)
Installation Depth	220 mm (Shallow foundation)	220 mm (Shallow foundation)
Foundation Top Edge	Flush (Standard) or 100 mm lowered foundation (Optional<	Flush (Standard) or 100 mm lowered foundation (Optional)
Optional Accessories	Street furniture components (benches, tables, bicycle racks), stainless steel shrouds, warning strips, lowered foundation	Street furniture components (benches, tables, bicycle racks), stainless steel shrouds, warning strips, lowered foundation

Modular urban elements

The CityProtector system can be expanded with integrated functional modules. All elements attach directly to the protective structure without additional foundations.

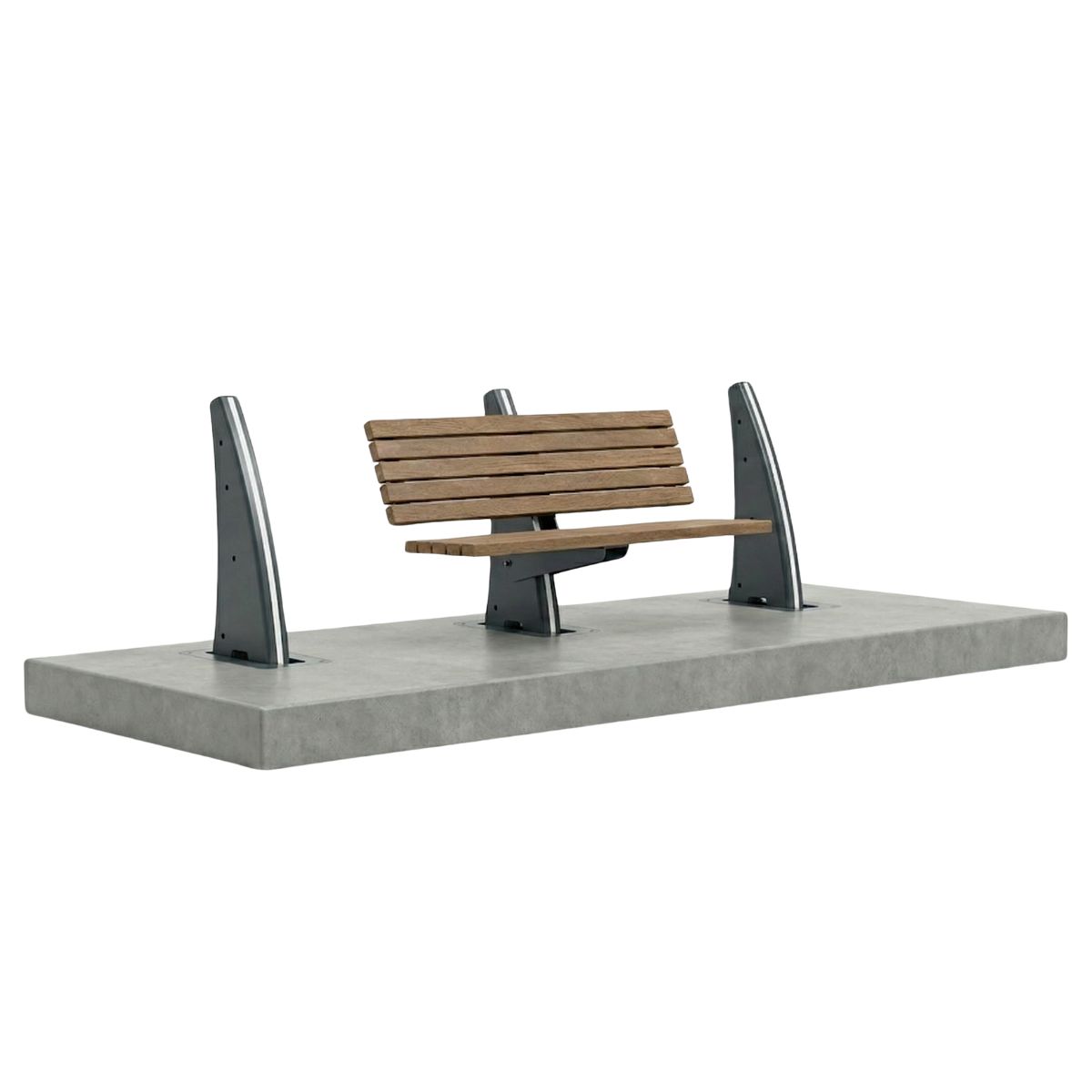

CityProtector – Bench

Provides comfortable seating in pedestrian zones and other urban areas.

Seat width	1500 mm, height 435 mm
Seat surface	low-maintenance and vandal-resistant recycled plastic
Colors	brown, red, green, blue
Color options (frame)	RAL 7035 or 7016

PeriGuard_CityProtector_Fahrradständer (2)

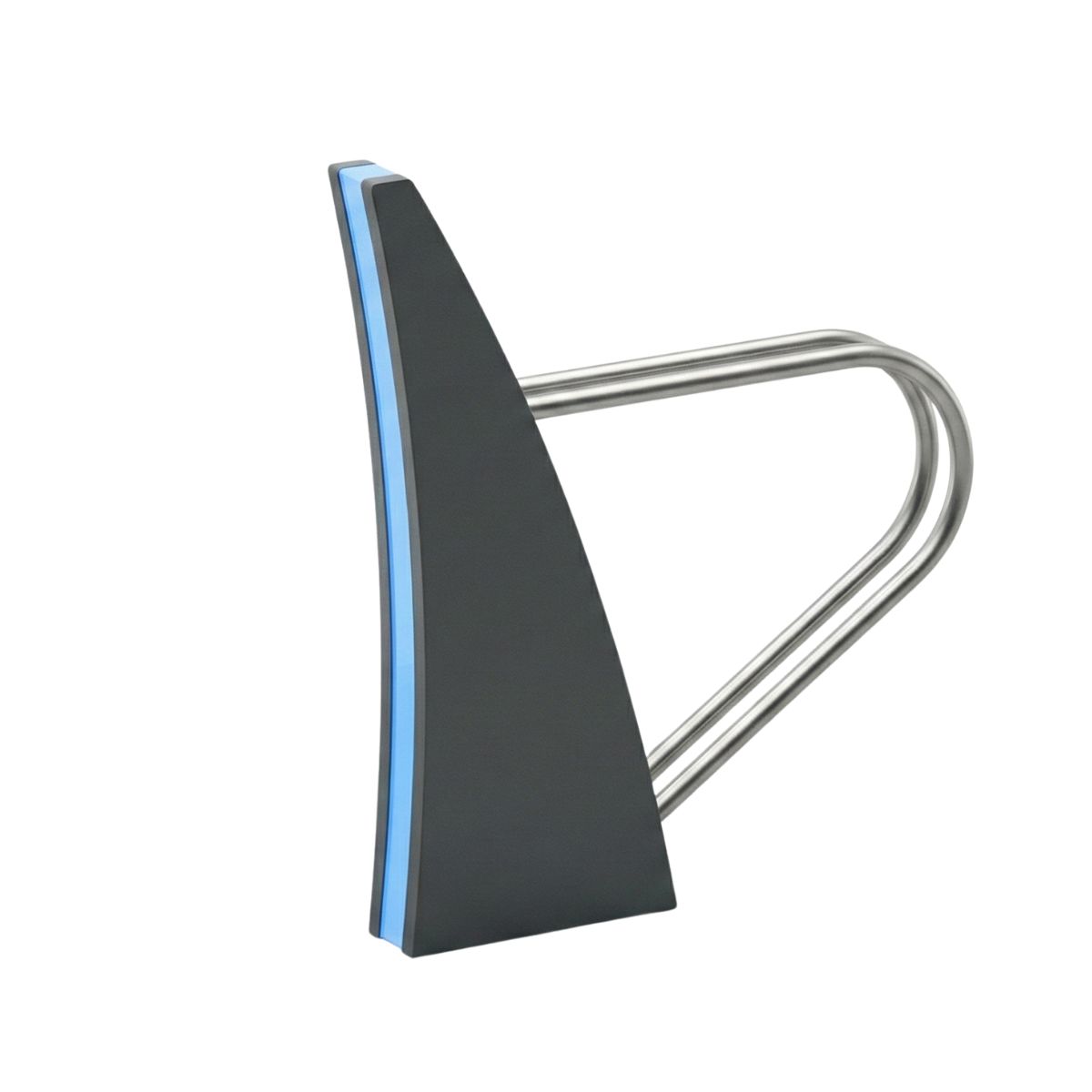

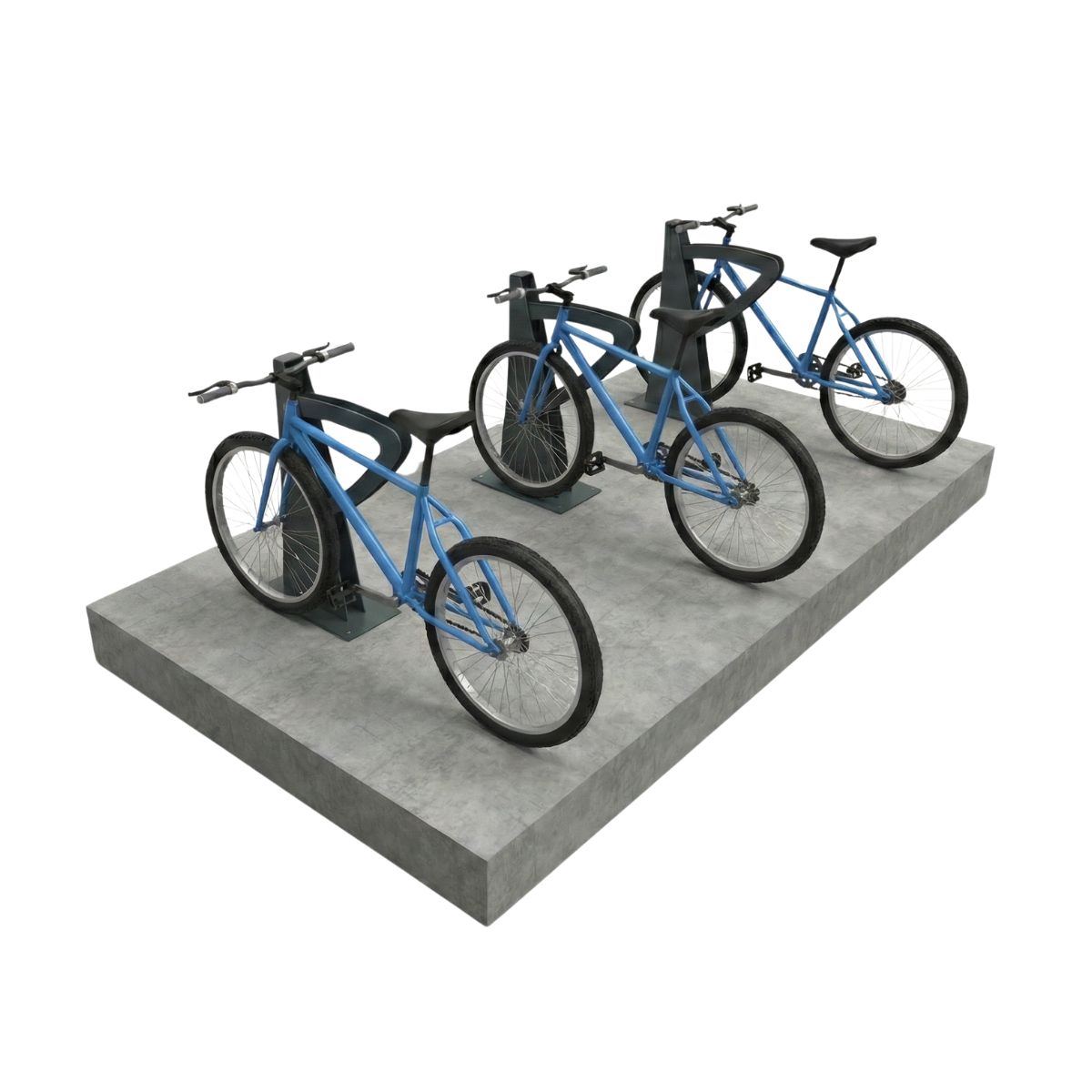

CityProtector – Bike Rack

Extension for creating secure parking facilities.

Design variant	curved
Dimensions	847 × 618 mm
Design variant	straight
Dimensions	783 × 556 mm
Option	anti-theft device

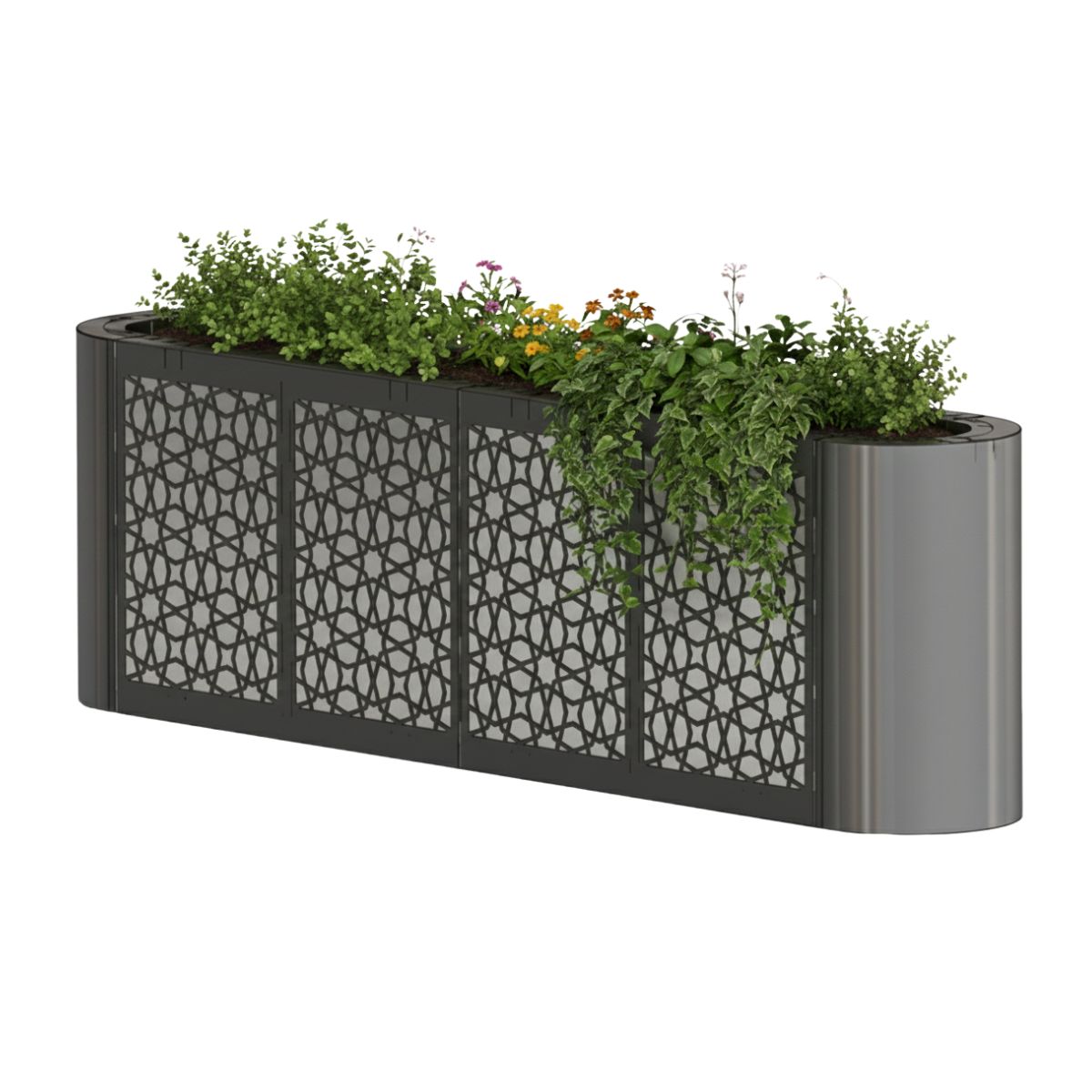

CityProtector – Planter

For greening and enhancing the appearance of urban spaces.

Height	1073 mm
Width	2010 mm (2-bollard system) / 3310 mm (3-bollard system)
Design	Patterned panels or custom design
Color options	All RAL colors available

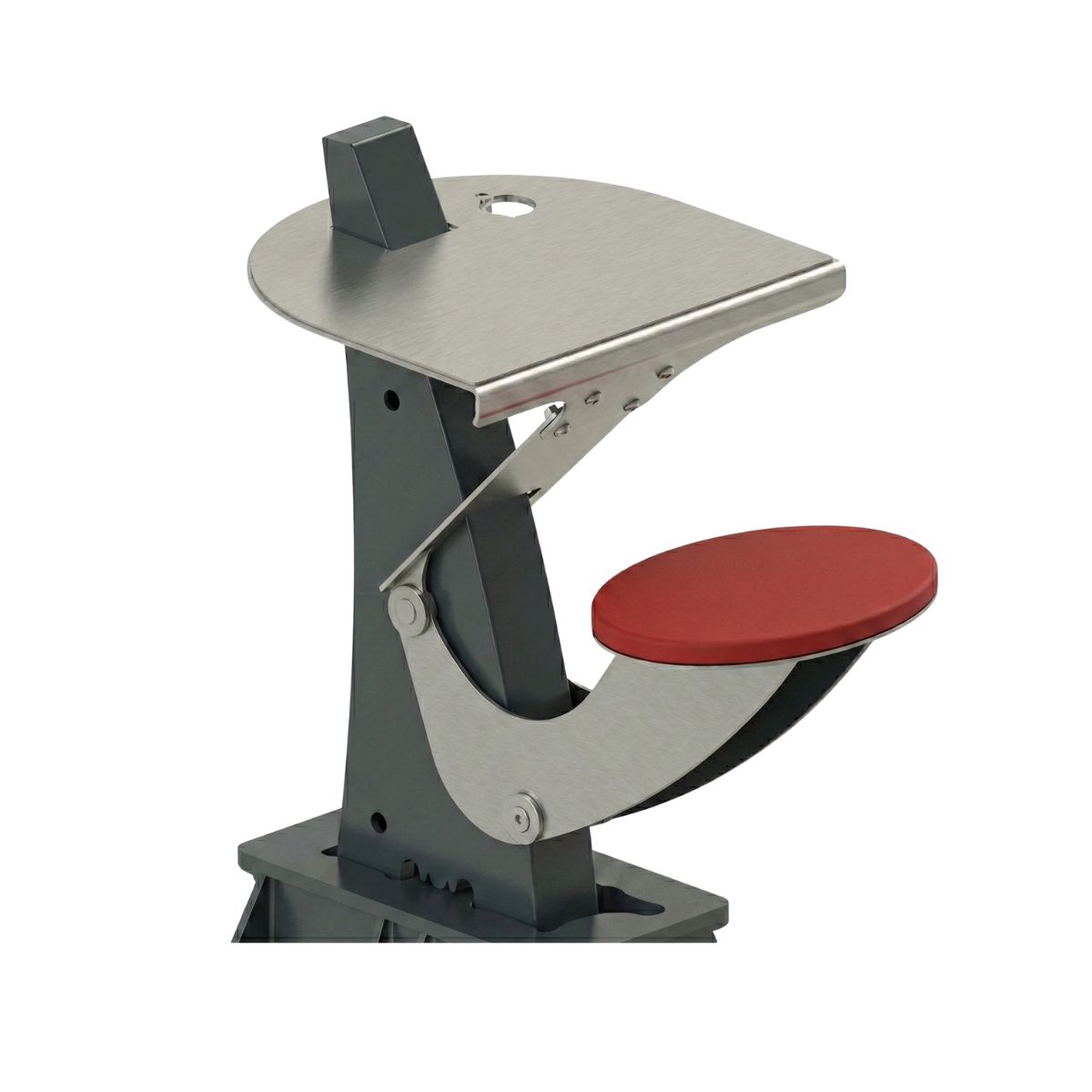

CityProtector – Single Table

Perfect for short breaks alone.

Table height	790 mm
Seat height	approx. 510 mm
Table surface	600 × 570 mm incl. drink holder
Optional	Anti-theft protection

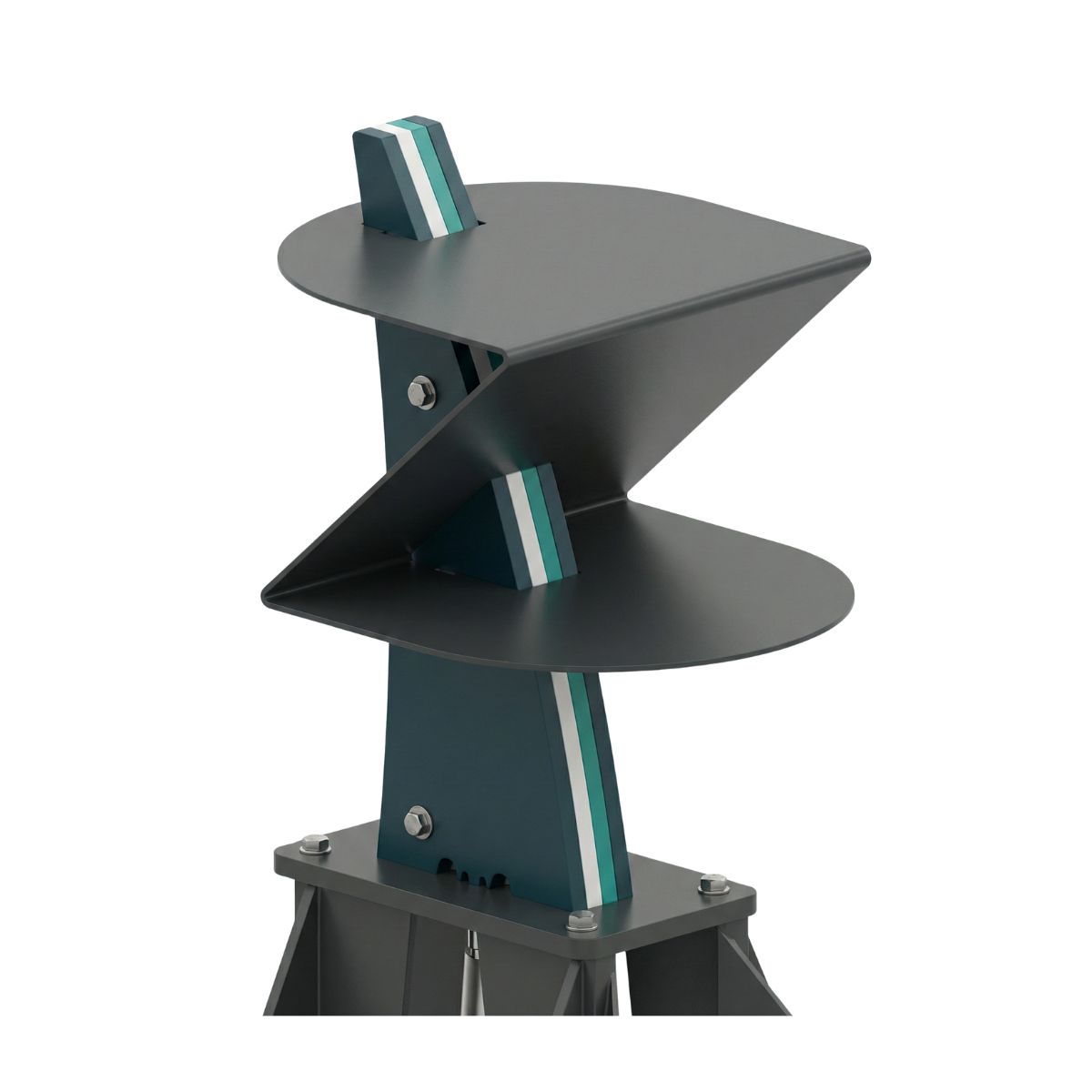

CityProtector – Doppeltisch

Suitable for standing communication and informal exchange – ideal for adjacent hospitality areas.

Table heights	Table 1: 790 mm & Table 2: 390 mm
Table width	600 mm
Optional	Anti-theft protection
