Robust road blocker for certified vehicle restraint
The Wedge I is a hydraulic high-security road blocker with verified protective performance in accordance with PAS 68 and DoS (K12 / L3). It provides defined vehicle restraint under standardized impact conditions and represents a proven, robust system architecture.
As a classic wedge system, it combines a heavy-duty steel structure, reliable hydraulic technology, and solid foundation integration into a durable solution for controlled access points with elevated security requirements.
The Wedge I is deployed where certified vehicle restraint in accordance with PAS 68 and DoS is required and a structurally proven solution is preferred.
The hydraulic road blocker reaches its blocking position within seconds and is designed for intensive use in continuous operation. Energy absorption is achieved through a heavy-duty structure with a conventional foundation design to ensure safe force dissipation.
It is suitable for projects with clearly defined protection requirements where robust engineering, proven design, and cost-efficient implementation are key priorities.
Controlled high-security access points with defined protection requirements
| Wedge I (K12) | |
| Crash Test Certification | Impact energy 1852 kJ (7.5 t @ 80 km/h) Certified according to PAS 68:2007 and DOS SD-STD-02.01 Rev. A (K12/L3) |
| Blocking Height | 1200 mm |
| Blocking Width | 2.00 m – 4.00 m (in 0.5 m steps) |
| Weight | Approx. 1900 – 2800 kg (wedge incl. housing) Approx. 280 – 400 kg (drive cabinet) |
| Installation Depth | 400 mm (height of the underground housing) |
| Top of Foundation | Underground housing flush with road surface (Housing dimensions: blocking width + 360 mm x 2100 mm) |
| Drive | Hydraulic (separate drive cabinet) |
| Control Unit | Microprocessor WE-Tronic II NXT (in external control box) |
| Operating Times | Raising: approx. 3.5 s / Lowering: approx. 3.5 s Optional: EFO (Emergency Fast Operation) approx. 1 s |
| Emergency Operation | Manual: Hand pump (raising), drain valve (lowering) Optional: RO3 (raise/lower via accumulator/battery pack) |
| Temperature Range | -20°C … +60°C |
| Optional Add-ons | EFO (emergency fast operation), RO3-package (batteries), warning plate with LED strip lighting, heating, custom colours, safety loops, biodegradable oil |
,,
Find the right protection for your needs.
The Wedge I is designed for access points where certified vehicle restraint in accordance with PAS 68 and DoS (K12 / L3) is required. As a hydraulic road blocker, it is suitable for projects with a clearly defined security level and a conventional foundation design to ensure reliable dissipation of impact forces.
It is primarily deployed at sensitive access points requiring a high level of protection against heavy vehicle attacks, such as government facilities, energy sites, or military installations.
K12 / L3 is a DoS classification for crash-tested road blockers and denotes the successful stopping of a 7.5-ton vehicle at 80 km/h. The Wedge I meets this performance level in accordance with DoS SD-STD-02.01 L3.
The standard lifting time is approximately 3.5 seconds. With the optional Emergency Fast Operation (EFO), full deployment can occur in approximately 1 second.
The Wedge I requires approximately 400 mm installation depth. For locations with reduced foundation availability, the shallow-mount Wedge II is recommended.
The system is operated via the WE-Tronic II control unit and can be integrated into existing access control, signaling, and security systems. Our PeriGuard experts will be happy to answer any questions you may have about our systems.

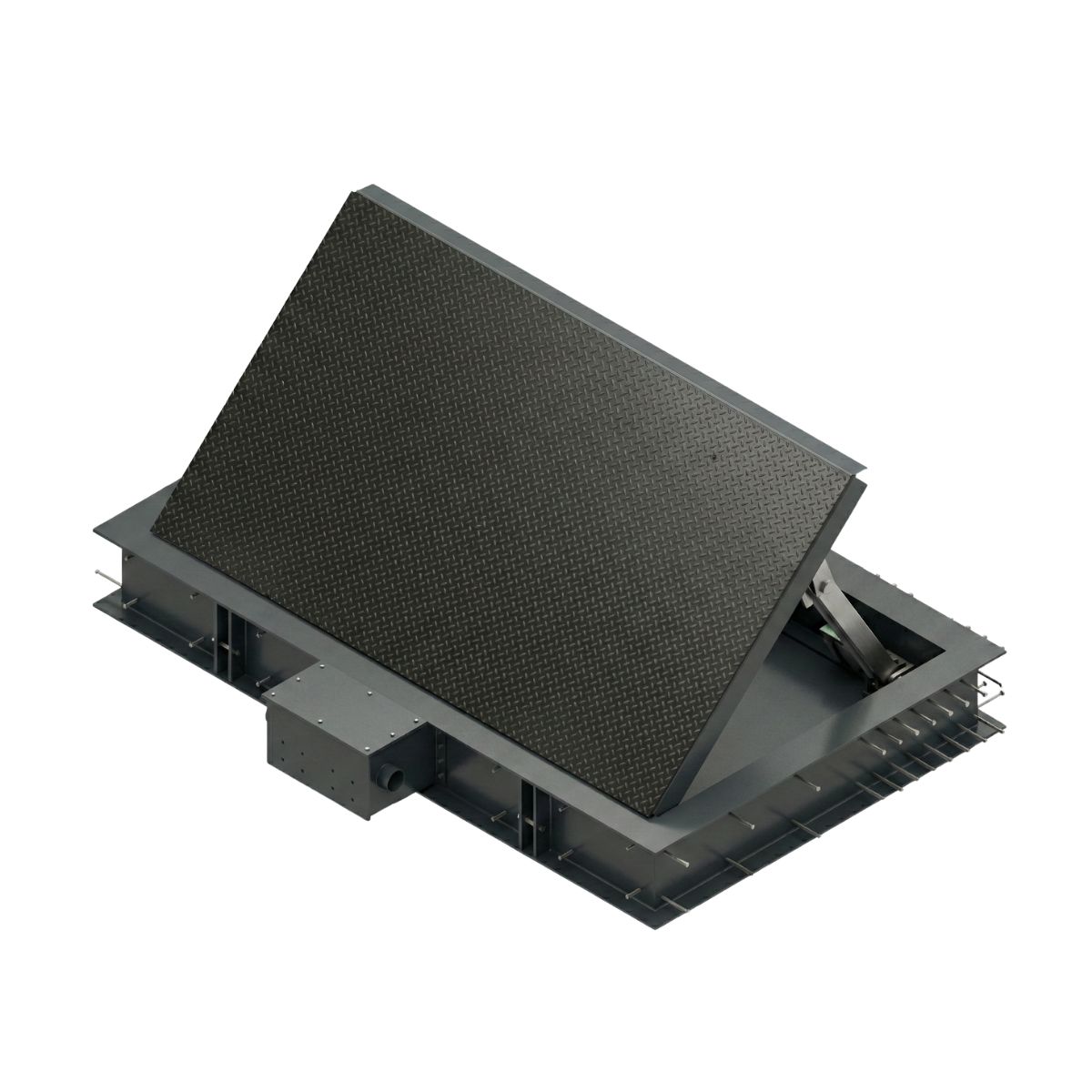

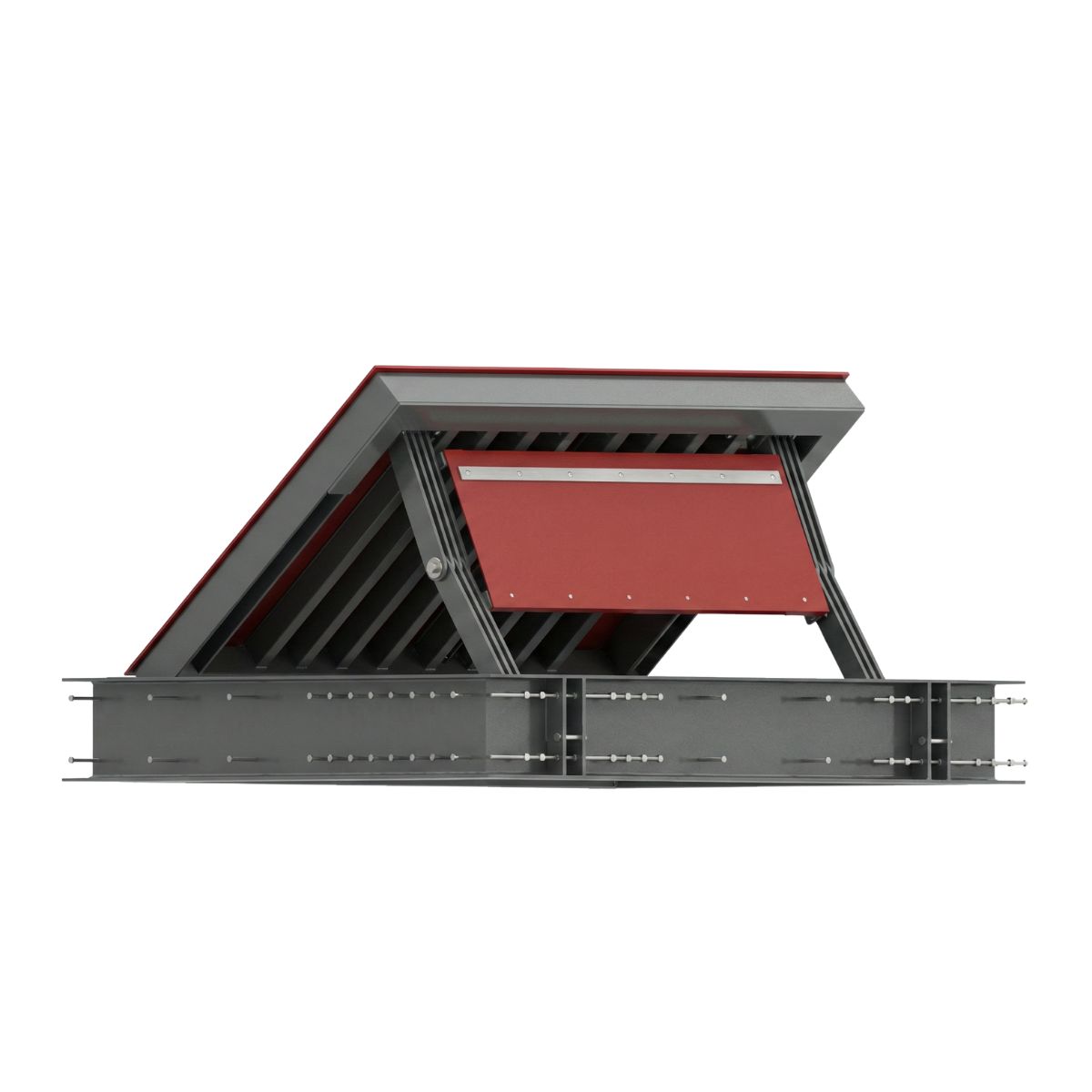

The product images shown are for illustrative purposes only and may vary in design and specific details.
